Cinebot Nano | The Lightest and Most Affordable Professional Cinebot
MRMC (Mark Roberts Motion Control) Cinebot Nano is the most compact, portable, and cost-effective camera robot in the Cinebot series. Designed for mobile filmmaking and lightweight crews, it combines impressive speed, reliable payload, and exceptional mobility, making it the ideal motion control solution for location shoots, content creation, and small-to-mid-sized productions.
Product Overview
The Cinebot Nano is an award-winning 9-axis portable motion control system. Featuring a lightweight design and intuitive operation, it offers the fastest speed, highest payload, and longest reach in its size class. Whether mounted on an adjustable pedestal or a precision track system, the Nano delivers smooth and fully repeatable complex camera movements with professional reliability.
Key Performance Specifications:
- Maximum Camera Speed (Arm + Track): 4.2 m/s
- Camera Payload: Up to 7 kg
- Reach (from rotate centre): 1 m
- Maximum Camera Height: 1.3 m
- Battery Option: Up to 10 hours of operation
Key Highlights
1. Ultra-Portable & Travel-Friendly
- Breaks down into 3 airline-friendly cases, each under 32 kg
- Extremely fast setup — from cases to shooting in minutes
- Total system weight only 49 kg, ideal for van, car, or air transport

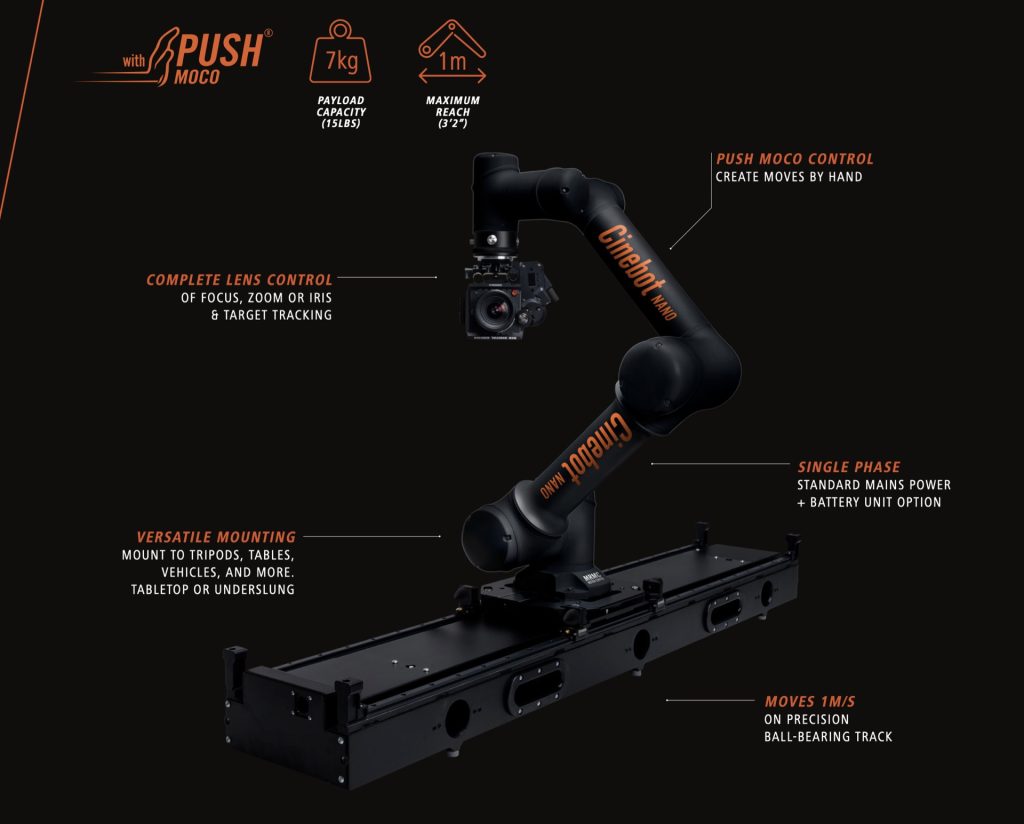

2. PushMoco® Manual Control
Simply push the robotic arm by hand to record keyframes, just like operating a traditional gimbal or dolly. This makes professional motion control accessible to users of all experience levels.
3. Flair Lite Software
Comes with Flair Lite included at no extra cost or subscription. The simplified interface focuses on essential features while remaining highly intuitive.
4. Versatile Deployment
- Available on pedestal or track configurations

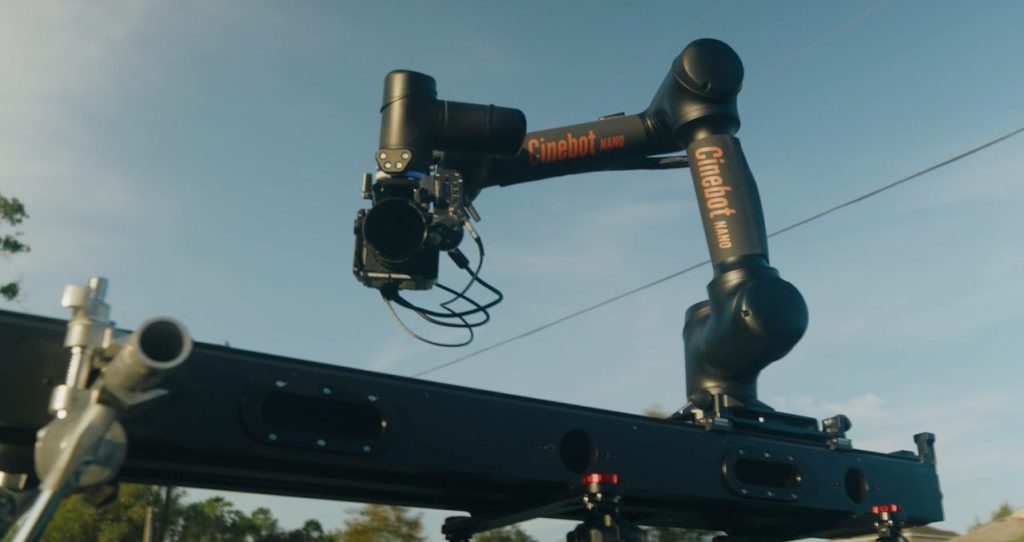

- Can be mounted on tripods, tabletops, carts, inverted, or even vehicles
- Compatible with Tilta wireless follow focus and zoom control
5. Extended Battery Life
Supports standard AC power or popular batteries such as EcoFlow, delivering over 10 hours of runtime — perfect for location shoots without mains power.
Technical Specifications (On Track)
Operating Envelope:
- Max Reach (from rotate centre): 1 m (3’2″)
- Max Height (from base): 1.3 m (4’3″)
- Lowest Position: -0.58 m (-1’11”)
Rig Performance:
- Arm Arc Move: 3.2 m/s max at camera
- Arm + Track: 4.2 m/s max at camera
- Track Speed: 1 m/s (1.45 m track length)
- Base Rotation: ±360° @ 200°/s
Weights & Power:
- Arm Weight: 25 kg (55 lbs)
- Track Weight: 22 kg (49 lbs)
- Total System Weight: 49 kg (108 lbs)
- Maximum Camera Payload: 7 kg (15.4 lbs)
- Power Requirements: 110 – 264 VAC, average consumption < 150W
Ideal Applications
The Cinebot Nano is perfectly suited for:
- On-location portable motion control
- Tabletop product and macro advertising
- Independent films, short films, and content creation
- Lightweight virtual production and VFX sequences
- Mobile teams requiring fast setup and high repeatability
- Travel shoots and high-quality low-budget productions
