Titan | Largest Range of Motion in Motion Control

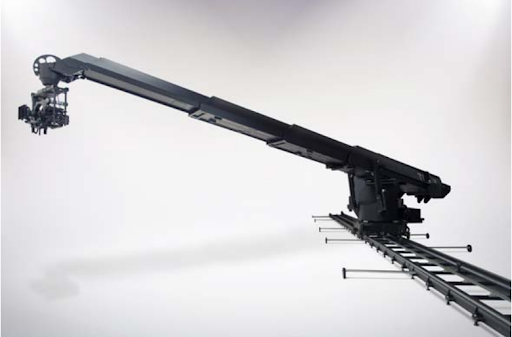

MRMC (Mark Roberts Motion Control) Titan is a high-end motion control platform designed for directors and cinematographers seeking maximum creative freedom. Featuring a powerful telescopic arm, it delivers the largest operating envelope and highest payload capacity in the MRMC range, enabling shooting styles impossible with traditional fixed-arm rigs.
Product Overview
The Titan provides unlimited creative possibilities with its telescopic travel and massive reach. Available on track, it serves as a complete high-end image capture solution, perfect for complex, large-scale productions that demand versatility, precision, and dramatic camera movement.
Key Performance Specifications:
- Telescopic Travel: 6.9 m
- Camera Payload: Up to 45 kg
- Maximum Camera Height: 8.7 m
- Maximum Travel (from sub-floor): 12.98 m
- Maximum Reach (from rotate centre): 9.06 m
Key Highlights
1. Huge Operating Envelope
The telescopic arm offers a fully repeatable, significantly larger reach than conventional motion control rigs, allowing dramatic moves from low angles to extreme heights.
2. High Payload Capacity
With a robotic head capable of handling up to 45 kg, the Titan supports large cine cameras and heavy accessories while maintaining precise, repeatable motion.
3. Telescopic Arm Design
The innovative telescopic arm enables creatives to capture a wide spectrum of imagery, expanding storytelling possibilities with smooth, dynamic camera movement.
4. Superior Performance on Track
- Track speed: 1.1 m/s (track sections available in 3 m lengths)
- Telescopic arm speed: 1.2 m/s
- Fully compatible with MRMC Flair motion control software for complex path programming and repeatability.
5. Robust & Flexible Deployment
Designed for both studio and location use, the Titan maintains exceptional stability and precision across its entire operating range.
Technical Specifications
Operating Envelope:
- Max Height: 8.7 m
- Lowest Position: -0.75 m
- Maximum Travel (from sub-floor): 12.98 m
- Maximum Reach (from rotate centre): 9.06 m
- Maximum Reach (from turret): 8.51 m
Rig Dimensions (for Clearances):
- Minimum Height (off track): 2.37 m
- Minimum Height (on track): 2.49 m
- Width (without counterweights): 1.27 m
- Length (in travel position): 4.20 m
Ideal Applications
The Titan is the ideal choice for ambitious productions requiring extreme range, high payload, and flexible movement, including:
- Large-scale virtual production and LED volume shoots
- High-end feature films and television
- Complex VFX sequences
- Premium commercials and product cinematography
- Dramatic high/low angle shots with heavy camera packages
